FlySight 5.8GHz Video TX & RX Cloverleaf Circular Polarized Antennas

Need to fly further?

Circular Polarized 5.8GHz Antennas - Video Clarity & Performance. For FPV flying, the 5.8GHz bandwidth is highly popular, and used often in multiple FPV applications. A circular polarized antenna reduces video drop outs. Clarity and range overall is increased. With enhanced multi-path rejection, you can focus on flying with more range.

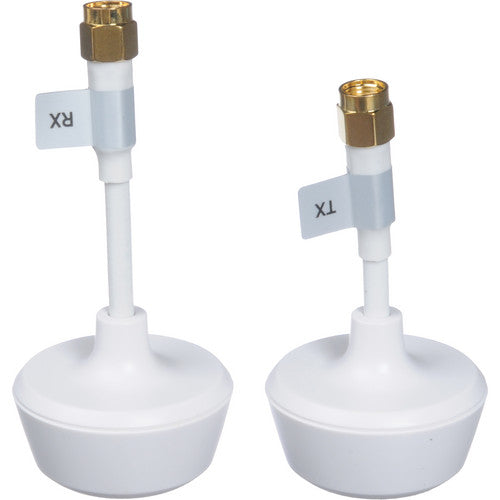

These (2) antennas are 5.8G FPV omnidirectional cloverleaf antennas with an outer shell protective covering - excellent for FPV, and protected from crash damage.

Included: (2) 5.8GHz RHCP Antennas - (1) for the Transmitter / (1) for the Receiver

Features:
5.8G FPV omnidirectional cloverleaf antenna
5.8G FPV omnidirectional circular polarized antenna
VSWR: less than 1.5
Outer shell protective covering

Specifications:
Frequency range: 5700 to 5900MHz
Impedance: 50Ω
VSWR: less than 1.5
Polarization: RHCP (Right Hand Circular Polarized)
Radiation: omni
Maximum power input: 20W
Connector: TBA
Coaxial cable: RG316
Antenna length: 91mm (RX, including the cover), 76mm (TX, including the cover), 63mm (RX, not including the cover), 50mm (TX, not including the cover)
